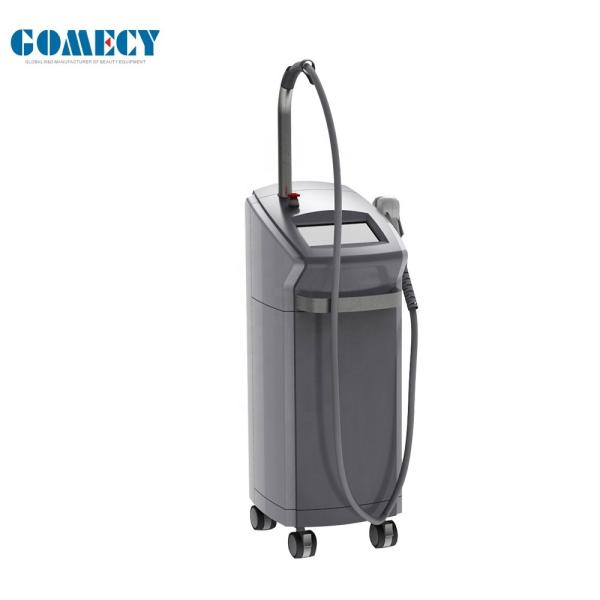

Stationary 1550nm RF Fractional Fiber Laser Facial Treatment Scar
Acne Removal Beauty Salon Machine
Working principle:
1550nm laser bean scan on the surface of the skin with fractional
way, forming a microscopic thermal zone, the area of skin isn’t
scanned as a heat diffusion area, reducing the damage of the skin.
1550nm laser works on target issues accurately, heats the water of
dermis’ collagen tissues, laser’s heat effect promotes collagen
regeneration, the volume of collagen is increasing and ordering,
then increasing the elasticity of the skin, improving skin
condition.
These areas as a repairing center after treatment, through human’s
skin, wound healing mechanism, promoting epidermis growing and
healing, leather fiber thickening, skin improving comprehensively.
Applications:
1. Acne and scars removal;
2. Skin activator;
3. Hair loss treatment:
4. Smooth skin, chloasma, and stretch mark treatment;
5. Skin resurfacing, skin rejuvenation, wrinkle removal, skin
tightening;
6. Pigments reduction, including freckles, sunburn, age spots.
Fiber lasers are semiconductor oscillating lasers that include a
laser module, a power supply, a control computer, an ammeter, and a
scanner.
Fiber lasers are Er.glass lasers with a lasing wavelength of
1550nm.|f the key switch is on, AC power is provided to the
machine, the motherboard controls the power to the computer, the
LCD touch monitor, the power supply, and the SMPS.
The control computer downloads the program and indicates the action
taken on the screen of the LCD touch monitor so that the user can
select parameters. The LCD touch display is now in touch monitoring
mode and if the user selects the appropriate item the wants form
energy, energy density, and energy form, the control computer, and
motherboard control the laser module and the hand-held scanner to
oscillate and control the laser module.
The quality of the laser results is influenced by external
conditions. The emergency switch shuts off the laser oscillation in
an emergency and the footswitch cuts off the laser radiation.
Fiber lasers are lasers that are applied in a safe and progressive
manner, using a selective setting mode as a laser scanning method
and, in particular, it stimulates and heals skin problems that are
damaged by the aging process and sun, such as facial wrinkles and
scars.
Functions & Advantages:
1, Acne and scars removal , Skin activator
2, Hair loss treatment
3, Smooth skin, chloasma and stretch mark treatment
4, Skin resurfacing, skin rejuvenation, wrinkle removal, skin
tightening
5, Pigments reduction, including freckles, sunburn, age spots
6, Non-Gasification treatment and Non- non-ablative.
7, Deep penetration depth on the skin, skin can absorb much energy
to function, solve skin problem from the root cause.
8, Intelligent Mode, operator can DIY shape on the machine to
control handle as customers skin area. It can reach more accurate effects.
9, Fractional output, Steady and enough energy, evenly distributed
dot
10, Quick recovery time for customers, after customers done
treatment with our 1550nm laser machine, they can back to normal
life soon,No wounds almost.
Specification
| Supply | AC 220V/110V 50Hz |
| Beam Delivery | Fiber |
| Wavelength | 1550nm |
| Optical Beam Quality | TEMoo |
| Maximum Output Power | 15walt are optional |
| Spot Size | 0.15mm |
| Spot Pattern | Circle / Triangle/ Square/ Rectangle / Rhombus |
Scan Area Spot Volume (Square) | Spots5x5- 18×18 |
| Spot Density | X0.5×1 / ×2 / ×3 / ×4 / ×5 / ×6 |
| Aiming Beam | 650 nm |
| Power of the Aiming Beam | ≤5mW |
| Scanning Mode | Randomized Scanning |
| Pulse Energy | 2mj~150mj (every stepping: 2mj) |
| Cooling | Air Cooling |
| Dimensions (before packaged) | 420mm×340mm×820mm |
| Dimensions (After Packaged) | 500mm×400mm×950mm |
Before & After
